Standard 27.5 Size
Standard 27.5" Size
FHD/4K Pixel to Pixel Resolutions
4 IN 1 Integrated Packaging
4 IN 1 Integrated Packaging
IMD Integrated Packaging
About Standard series
TileDFS 480-1DFS 480-2DFS 480-2DFS 512DFS 512DFS 576DFS 576DFS 576DFS 640-1DFS 640-1DFS 640-1DFS 640-1DFS 640-2DFS 640-2DFS 640-2DFS 640-2
Pixel Pitch2.5 mm2.5 mm5 mm2 mm4 mm3 mm4.8 mm6 mm2 mm2.5 mm4 mm5 mm2 mm2.5 mm4 mm5 mm
Max Brightness Calibrated1000 nits (black)1000 nits (black)1000 nits (black)600 nits (black)800 nits (black)800 nits (black)800 nits (black)800 nits (black)600 nits (black)1000 nits (black)800 nits (black)1000 nits (black)600 nits (black)1000 nits (black)800 nits (black)1000 nits (black)

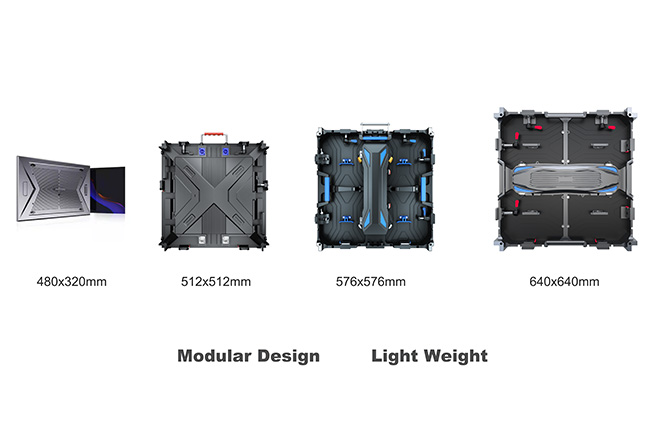

Panel Dimension480 x 320 x 70 mm480 x 480 x 90 mm480 x 480 x 90 mm512 x 512 x 90 mm512 x 512 x 90 mm576 x 576 x 90 mm576 x 576 x 90 mm576 x 576 x 90 mm640 x 480 x 90 mm640 x 480 x 90 mm640 x 480 x 90 mm640 x 480 x 90 mm640 x 640 x 90 mm640 x 640 x 90 mm640 x 640 x 90 mm640 x 640 x 90 mm
Panel Resolution ( H x V )192 x 128192 x 19296 x 96256 x 256256 x 256192 x 192120 x 12096 x 96320 x 240256 x 192160 x 120128 x 96320 x 320256 x 256160 x 160128 x 128
Frame MaterialDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum AlloyDiecasting Aluminum Alloy
Weight Per Panel5 kg7.5 kg7.5 kg8 kg8 kg9 kg9 kg9 kg8 kg8 kg8 kg8 kg9 kg9 kg9 kg9 kg
Power Consumption Max / Average500 W / 250 W Per ㎡500 W / 250 W Per ㎡500 W / 250 W Per ㎡600 W / 300 W Per ㎡500 W / 250 W Per ㎡600 W / 300 W Per ㎡700 W / 350 W Per ㎡600 W / 300 W Per ㎡600 W / 300 W Per ㎡500 W / 250 W Per ㎡500 W / 250 W Per ㎡500 W / 250 W Per ㎡600 W / 300 W Per ㎡500 W / 250 W Per ㎡500 W / 250 W Per ㎡500 W / 250 W Per ㎡
TransparencySolidSolidSolidSolidSolidSolidSolidSolidSolidSolidSolidSolidSolidSolidSolidSolid
ServiceabilityFront / RearFront / RearFront / RearFront / RearFront / RearFront / RearRearRearFront / RearFront / RearRearRearFront / RearFront / RearRearRear
Curving (Concave & Convex)Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°Custom 10° ~ 15°
SMD ConfigurationSMD2121 BlackSMD2121 BlackSMD2121 BlackSMD1515 BlackSMD2121 BlackSMD2121 BlackSMD2121 BlackSMD3528 WhiteSMD2121 BlackSMD2121 BlackSMD2121 BlackSMD2121 BlackSMD2121 BlackSMD2121 BlackSMD2121 BlackSMD2121 Black
Physical Density160,000 Pixels / ㎡160,000 Pixels / ㎡40,000 Pixels / ㎡250,000 Pixels / ㎡62,500 Pixels / ㎡111,111 Pixels / ㎡43,264 Pixels / ㎡27,777 Pixels / ㎡250,000 Pixels / ㎡160,000 Pixels / ㎡62,500 Pixels / ㎡40,000 Pixels / ㎡250,000 Pixels / ㎡160,000 Pixels / ㎡62,500 Pixels / ㎡40,000 Pixels / ㎡
Viewing Angle ( H / V)160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°160° / 140°
Refresh Rate3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz3840 Hz
Gray Scale14 bit14 bit14 bit14 bit14 bit14 bit14 bit14 bit14 bit14 bit14 bit14 bit14 bit14 bit14 bit14 bit
Scan Ratio1/321/321/161/321/161/321/161/161/401/321/161/161/401/321/161/16
Operational Temp / Humidity- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH- 20° ~ 45°C / 10-90% RH
Storage Temp / Humidity- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH- 40° ~ 60°C / 10-90% RH
IP Rating (Front / Rear)IP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 IndoorIP30 / IP30 Indoor

*Note: The specifications are for reference, actual values may vary.No Data
Standard 16:9 Size
Pixel to Pixel 4K&FHD Resolutions
Standard indoor LED display
G.A.LED Common Cathode Technology
G.A.LED common cathode technology improves brightness with better heat dissipation
High brightness high contrast with perfect performance
Standard indoor LED display
Others
Standard indoor LED display
Standard series
Standard indoor LED display
Standard series

The LED volume is suitable for multi-disciplinary productions. However, it has been specifically designed to shoot virtual backgrounds for film,


TV drama and commercial productions.


The LED volume is suitable for multi-disciplinary productions. However, it has been specifically designed to shoot virtual backgrounds for film,
